High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

High-Tg Epoxy Resin

UV/Weather-Resistant Electrical Insulating Epoxy

High Dielectric Strength Potting Compound

Herkunftsort:

CHINA

Markenname:

wenyou

Zertifizierung:

ISO9001, ISO14001, SGS, and UL

Modellnummer:

8216

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Einstufung:
Zweikomponentenklebstoffe
Verwendung:
mit einer Breite von nicht mehr als 30 mm,
Anwendung:
Elektrische Isolatoren für Mittel- und Hochspannungsanwendungen
Aussehen von Epoxidharz:
Hellgelbe transparente zähflüssige Flüssigkeit
Viskosität bei 25°C:
9500 - 15500 mPa.s.
Dichte bei 25°C:
1.16 - 1,20 g/cm3
Dampfdruck bei 25°C:
< 0,01 Pa
Flammpunkt:
etwa 145°C
Beschreibung:
UL-zertifizierter Epoxidharzlieferant Flammschutzmittel für Innen- und Außenanwendungen
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
20 kg/Eimer als Probe
Preis
Verhandlungsfähig
Verpackung Informationen

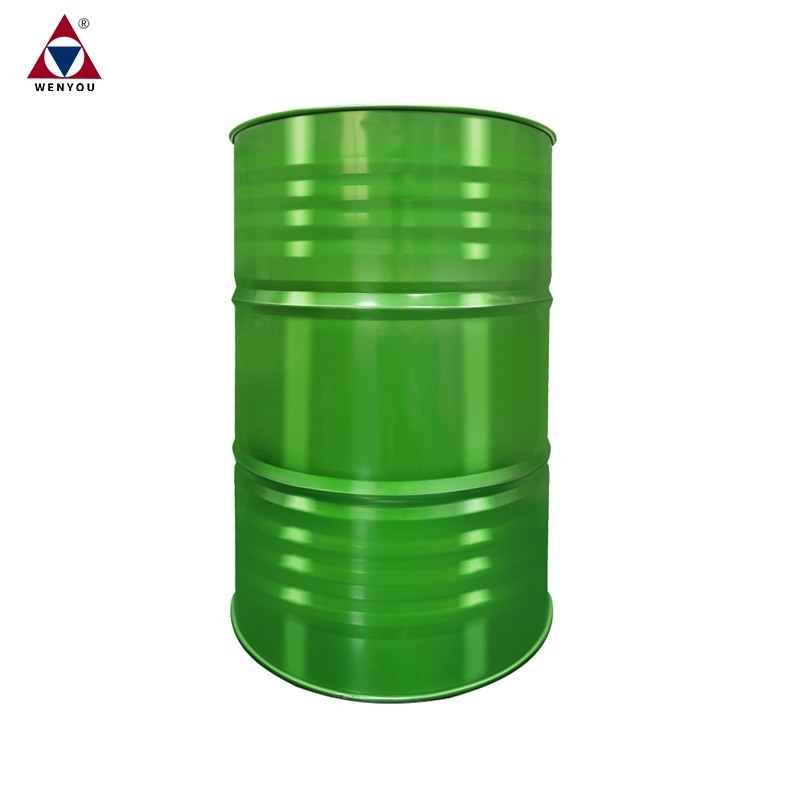

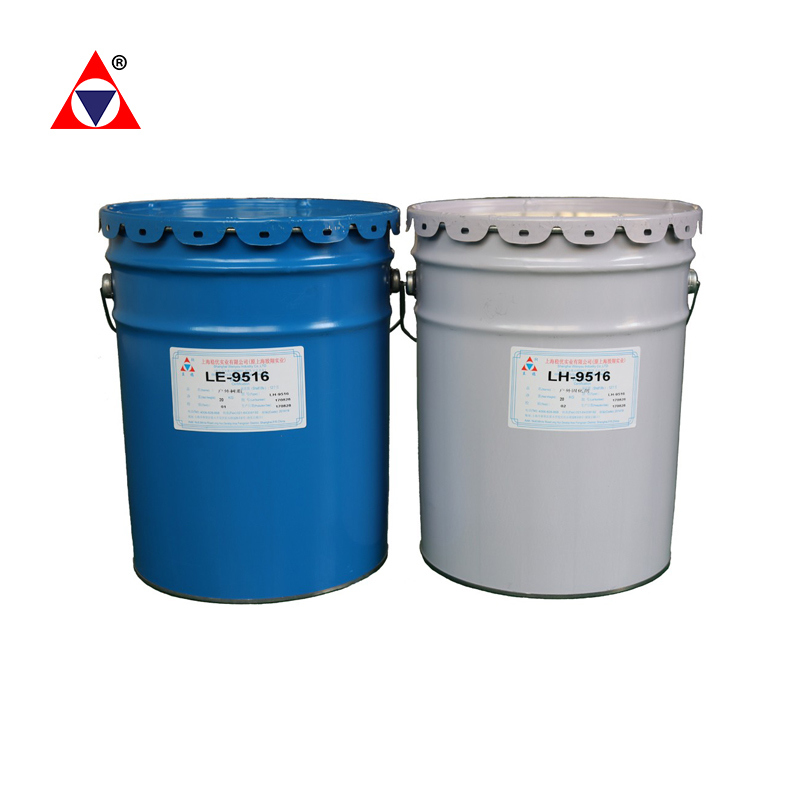

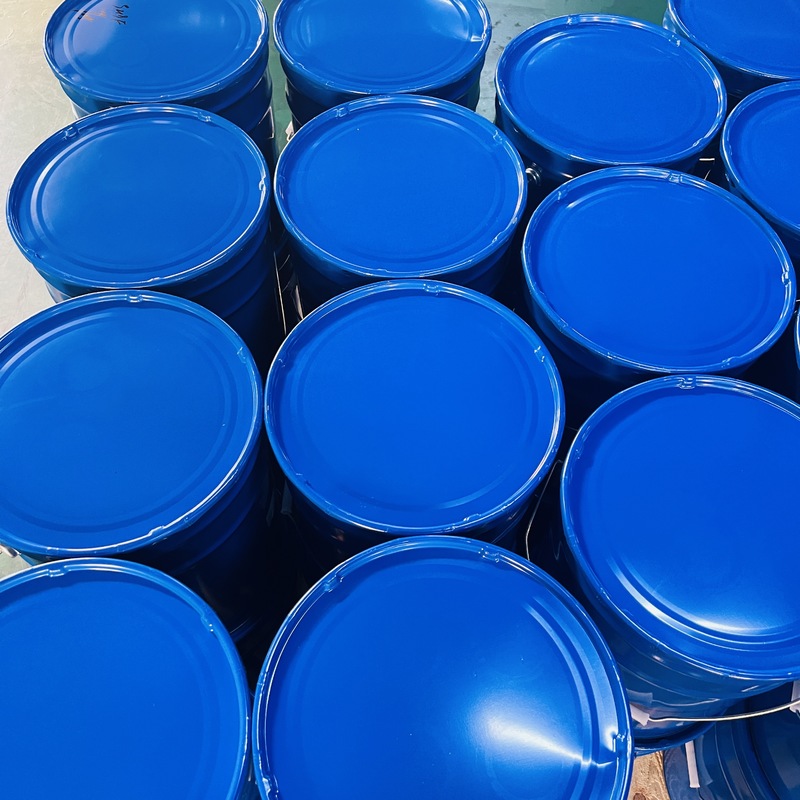

20 kg/Eimer, 220 kg/Fass, 1200 kg/Tank
Lieferzeit
7 bis 10 Arbeitstage
Zahlungsbedingungen
Normalerweise T/T, L/C
Versorgungsmaterial-Fähigkeit
Viel Rohstoff vorrätig
Produkt-Beschreibung
High-Tg Epoxy Resin for APG Process | Vacuum Casting & Electrical Insulating
LE-8216/LH-8216: UL-Certified Room Temperature Cure Epoxy for CT/PT Potting & Encapsulation
Flame-Retardant | UV/Weather-Resistant | High Dielectric Strength

Engineered for transformer encapsulation in Current Transformers (CT) and Potential Transformers (PT), LE-8216/LH-8216 delivers fast room temperature curing, eliminating energy-intensive ovens. This UL-certified, flame-retardant epoxy system combines a modified cyclic aliphatic epoxy resin (LE-8216) and weather-resistant anhydride hardener (LH-8216) for superior electrical insulation, moisture resistance, and vibration damping in demanding indoor/outdoor environments.

Key Features & Benefits
  • Fast Ambient Cure: Saves energy with rapid curing at room temperature.
  • Robust Protection: Shields CT/PT units from thermal shock, contaminants, and mechanical stress.
  • Superior Insulation: High dielectric strength (>18 kV/mm) for high-voltage applications.
  • Flame Retardant: UL 94 V-0 certified for safety-critical installations.
  • Weatherproof: Exceptional UV/environmental resilience for outdoor use.
  • Low-Viscosity Formulation: Penetrates intricate coils for void-free gap filling.
Applications

Ideal for:

  • Transformer potting & encapsulation (CT/PT units)

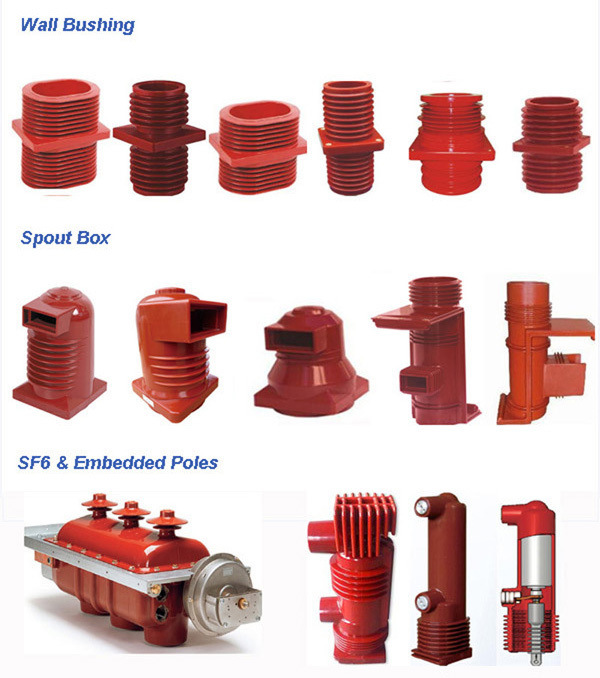

  • Medium/high-voltage insulators, bushings, and switchgear
  • Electrical components requiring moisture-resistant protection
  • Flame-retardant insulation in power infrastructure
Processing Methods
Method Description
Vacuum Gravity Casting Traditional method for bubble-free transformer encapsulation under vacuum.
Automatic Pressure Gelation (APG) High-efficiency process for mass production of CT PT epoxy components.
Material Properties
Property Value/Description
Curing Temperature Room temperature (20-25°C)
Dielectric Strength >18 kV/mm
Thermal Shock Resistance Excellent (ASTM D2519)
Viscosity Low (optimized for deep gap filling)
Flame Rating UL 94 V-0 certified
Color Options Customizable via LC-series paste
Formulation Guide
Component Product Proportion (pbw)
Epoxy Resin LE-8216 100
Hardener LH-8216 100
Filler Silica Powder 280-350
Colorant LC-Series* 3

*Add LC-series paste for UV-stable pigmentation.

Why Choose LE-8216/LH-8216?

This electrical-grade epoxy system excels as a potting compound for transformer manufacturing, offering unmatched electrical component protection. Its saturated cyclic aliphatic structure ensures long-term stability under thermal cycling, while silica-filled reinforcement enhances mechanical strength and dielectric performance. Compatible with vacuum casting and APG processes, it integrates seamlessly into existing production lines--ideal for creating reliable, flame-retardant CT/PT encapsulation with minimal energy input.

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 0
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 1
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 2
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 3
Keywords: Room temperature cure epoxy, CT PT epoxy, transformer potting, transformer encapsulation, electrical insulation epoxy, potting compound, flame retardant epoxy, UL certified epoxy, dielectric strength, vibration damping, moisture resistant, gap filling, electrical component protection, fast cure epoxy, low viscosity epoxy, thermal shock resistance, UV resistance, Automatic Pressure Gelation, vacuum casting.
