Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

Herkunftsort:

CHINA

Markenname:

wenyou

Zertifizierung:

ISO9001, ISO14001, SGS, and UL

Modellnummer:

8517

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Einstufung:
Zweikomponentenklebstoffe
Verwendung:
mit einer Breite von nicht mehr als 30 mm,
Anwendung:
Elektrische Isolatoren für den Außenbereich für Mittel- und Hochspannungsanwendungen
Aussehen von Epoxidharz:
Hellgelbe transparente zähflüssige Flüssigkeit
Viskosität bei 25°C:
1000 - 2500 mPa.s.
Dichte bei 25°C:
1.16 - 1,20 g/cm3
Dampfdruck bei 25°C:
< 0,01 Pa
Flammpunkt:
Um 135°C
Beschreibung:
Flexible Epoxidharze für die Verkapselung von Transformatorspulen - an unterschiedliche Bedingungen
Epoxidwert:
4.5 - 5,0Eq/kg
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
20 kg/Eimer als Probe
Preis
Verhandlungsfähig
Verpackung Informationen

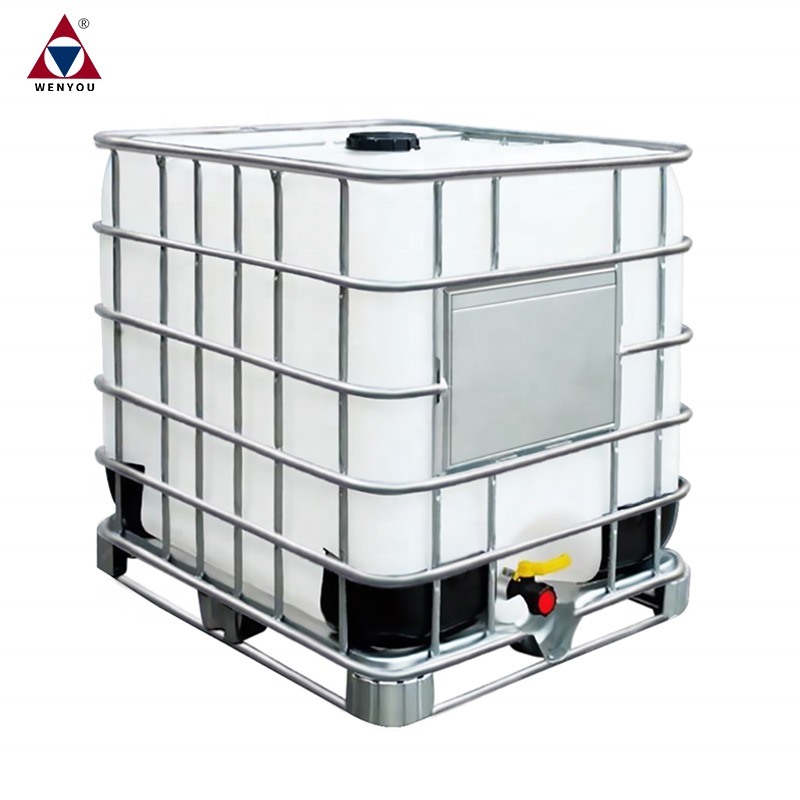

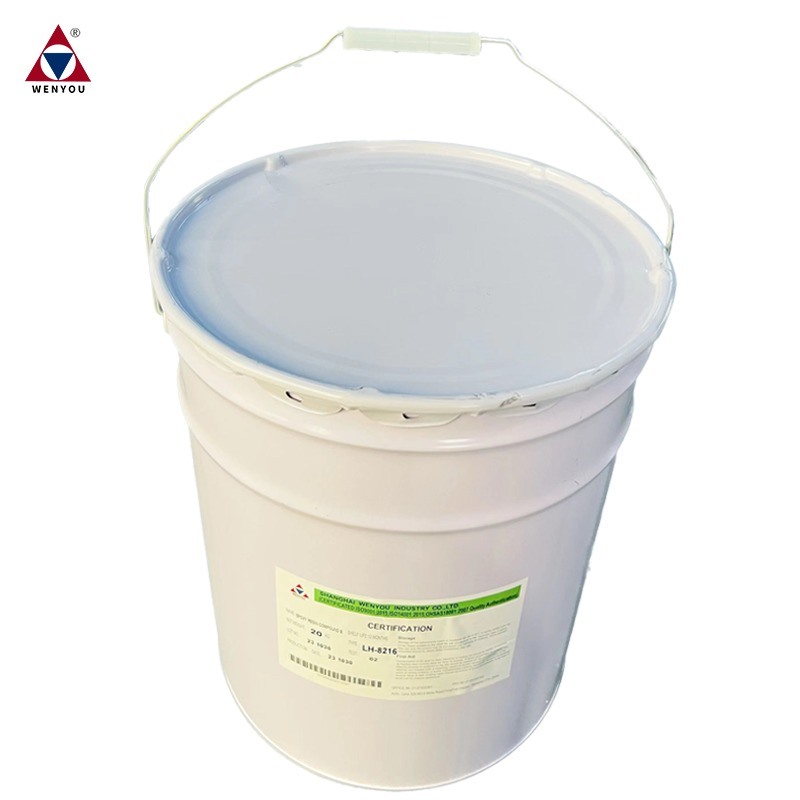

20 kg/Eimer, 220 kg/Fass, 1200 kg/Tank
Lieferzeit
7 bis 10 Arbeitstage
Zahlungsbedingungen
Normalerweise T/T, L/C
Versorgungsmaterial-Fähigkeit
Viel Rohstoff vorrätig
Produkt-Beschreibung
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
